7 watt LED Direct Wire Downlight; 4 inch; 4000K; 120 volt; Dimmable; Square : X3K2X

Return to Catalog

Part Number: X3K2X / Vendor ID #: 27

7 watt LED Direct Wire Downlight; 4 inch; 4000K; 120 volt; Dimmable; Square

$25.24

Item Sales Info

Add To Wishlist

Compare Item

Availability

Manufacturer may be Out Of Stock.
This Item has been Discontinued. Please verify product pricing and availability with vendor prior to submitting any orders.

Dimensions

Height: 3.00"

Width: 4.94"

Product Overview

7 watt LED Direct Wire Downlight; 4 inch; 4000K; 120 volt; Dimmable; Square

Standard Information

Category:

Recessed Ltg.

Subcategory:

Other Recessed Ltg.

Finish:

White

Option:

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Direct Wire

Style:

Utility

Bulb Hours:

40000

Bulb Kelvin:

Cool White

Bulb Shape:

Integrated LED

Bulb Type:

LED

Dimmable:

Yes-Dimmable

Harmonized Codes:

9405.11.8010

Length:

4.94

Lumens:

490L

Ship Carton Height:

5.43

Ship Carton Length:

5.9

Ship Carton Width:

3.35

Warranty:

5-Years

Air Tight:

Yes

Amps:

0.058A

ANSI Base:

Integrated

BAA Compliant:

Beam Spread:

CA Prop-65:

Lead

Carton Cubic Feet:

0.0621

Cartons Per Unit:

CCT Selectable:

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Ceiling Aperture:

4.33 in. Cutout

Connection:

Direct Wired

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Forward Phase or Reverse Phase or Phase Selectable or Triac

Efficacy:

70.00 LPW

FCC Compliant:

Yes

Feature 1:

Canless recess lighting engineered for new constructions, drop ceilings, multi-level constructions and shallow ceilings.

Feature 2:

Fixture dimensional specifications (in inches) Height: 3.00, Width: 4.94, Length: 4.94

Feature 3:

Direct Wired installation; Wet rated, for indoor use

Feature 4:

Integrated LED

Feature 5:

90 CRI superior quality LED light, rated for 40000 hours, for an energy efficient lighting option

Feature 6:

5 year limited warranty. See manufacturer website for details

Finish Family:

White

Fixture shape:

Square

IC Rated:

Yes

Incandescent Equivalent:

45W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Long Description:

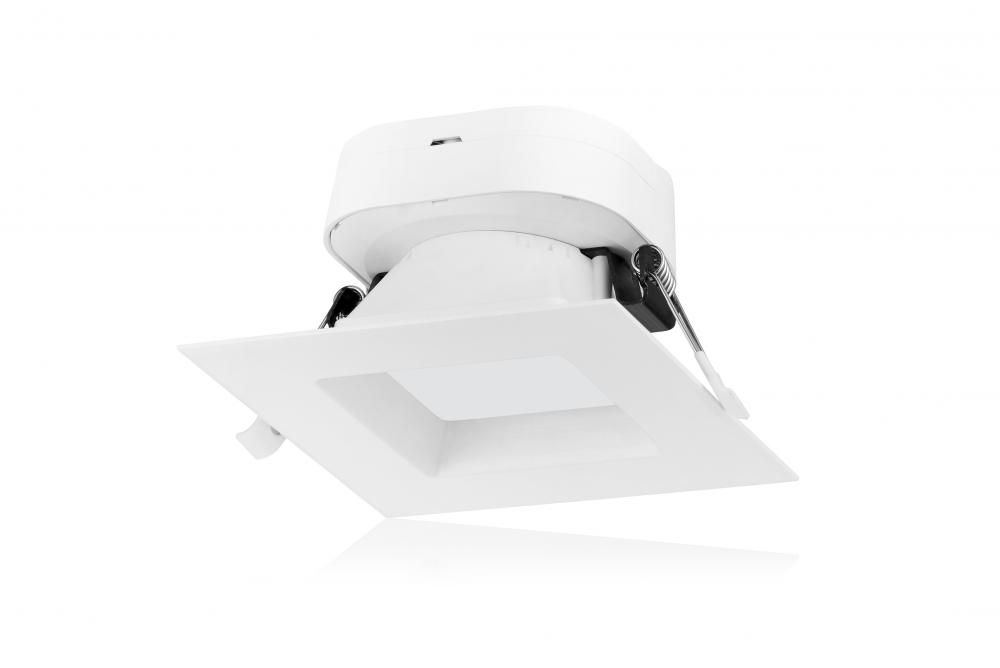

Satco's S11702, 4 inch square 7 watt dimmable LED direct wire downlight retrofit recessed fixture makes downlighting convenient to install in multi-level spaces. Dimmable, with superior, 90 CRI light in 4000K, this fixture features easy clip in install

Material:

Aluminum / Polycarbonate (PC)

Max Drywall Thickness:

7/8 in.

Minimum Compartment Size:

Height: 3.94 in.

Mounting Procedure:

Ceiling

Operating Frequency:

50/60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>.9

Quantity In Pack:

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

The 4 inch square 7 watt dimmable LED direct wire downlight retrofit recessed fixture makes downlighting convenient to install in multi-level spaces. Dimmable, with superior, 90 CRI light in 4000K, this fixture features easy clip in installation.

Safety Listing:

cETLus - Listed

SDS class:

LED_Lamp

Short Description:

7WLED/DW/SQ/4/40K/120V

Temperature (CCT):

4000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes
