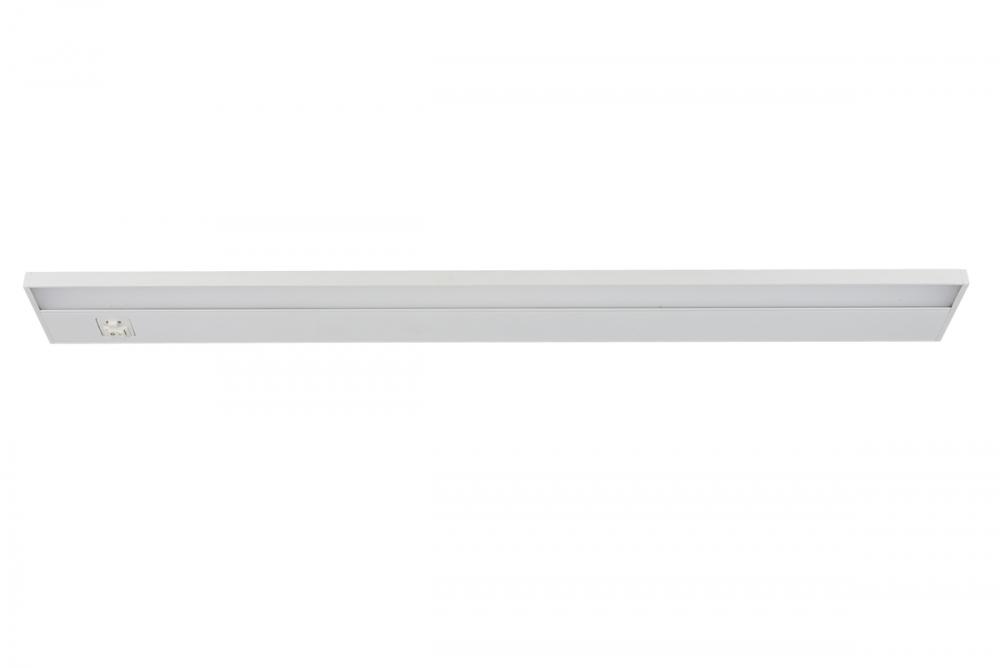

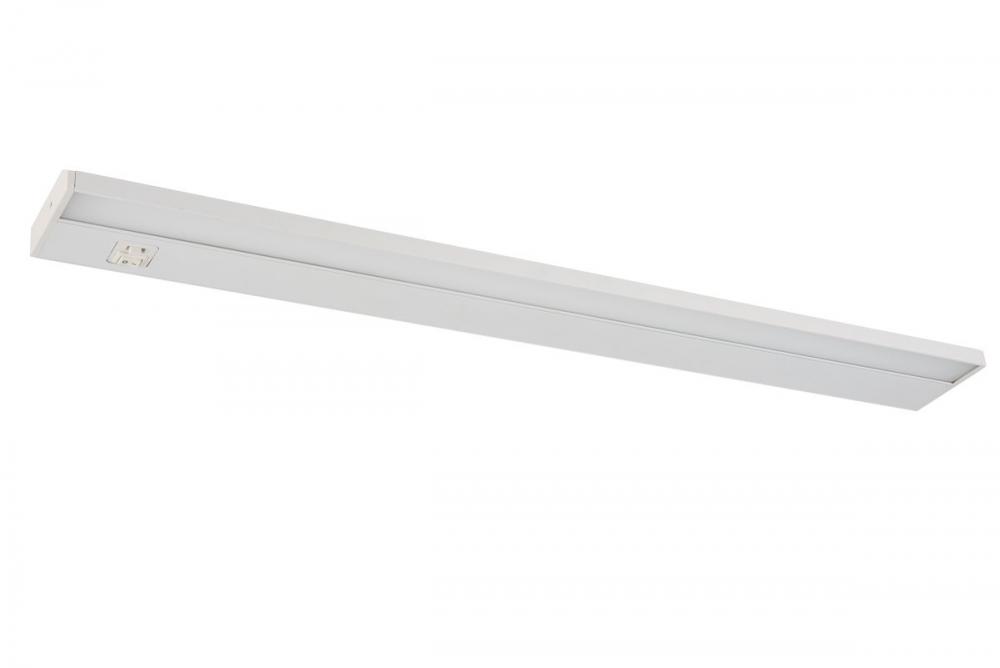

The new three in one modular dimmable LED undercabinet fixture with switchable color temperatures, a low profile housing and glare-free acrylic lens. Dimmable with most standard 2 wire and cl dimmers. Microswitch on the housing can be set to 2700K, 3000K, 4000K. Low profile housing hides easily less than one inch high. Full length acrylic lens diffuses light evenly over the work area. Multiple connection points hold the PC board firmly against heat sink, optimizing heat dissipation and extending LED life.
Standard Information
Category:
Undercabinet
Subcategory:
LED Undercabinet Lights
Finish:
White
Style:
Traditional
Option:
Title 24
Damp Rated
LED
Prop 65
Refinement Options
Category:
Undercabinet Kitchen Light
Finish:
White
Option:
Prop 65
Title 24
Family:
Graysen
Bulb Dimmable:
Yes
Bulb Shape:
Rectangular
Bulb Type:
Integrated LED
Introduction Date:
09/01/2017
Kelvin:
2700, 3000, 4000
Lumens / Light Output:
1200
Ship Carton Height:
1.38
Ship Carton Length:
32.87
Ship Carton Width:
3.94
Ship Weight:
2.22
Vendor Ship Method:
Small Parcel, Loose Box
Warranty:
1 Year Limited
Weight:
2.14
Beam Angle:
106
Billable Weight:
1
Bulb CRI:
90
Bulb Wattage 2:
16 W
Canopy:
Yes
Country Of Origin:
China
DLC:
No
Energy Star:
No
Estimated Yearly Energy Cost:
1.93
Housing Material:
Aluminum
Input Voltage:
120 V
LED Type:
Hongli
Lens:
PC
Life Based on 3hrs Day:
3.26
Location Rating:
Wet Rated, Damp Rated
Lumens Watt:
75
Number of Boxes:
1
Power Factor:
>0.9
Prop 65:
View
Prop 65 Chemical:
View
Prop 65 Description:
View
Rated Life Hours:
35000
Safety Rating:
ETL Approved
Title 20:
No
Title 24:
Yes
Total Carton Weight:
2.22
Volume:
0.1
Watt Equivalent:
75 W
Estimated yearly energy cost: $1.9272 (based on 3 hours/day, 11ยข/kwh; cost depends on rates and use). average life based on 3 hours per day is 35000 hours
